USB Headers & Ports Guide

USB Standards Overview

USB (Universal Serial Bus) has evolved significantly since its introduction. Modern motherboards support multiple USB standards simultaneously, each offering different speeds and connector types. Understanding these standards helps you make the most of your board's connectivity.

Standard	Speed	Also Known As	Connector Types
USB 2.0	480 Mbps	Hi-Speed	Type-A, Type-B, Mini, Micro
USB 3.2 Gen 1	5 Gbps	USB 3.0 / USB 3.1 Gen 1	Type-A (blue), Type-C
USB 3.2 Gen 2	10 Gbps	USB 3.1 Gen 2	Type-A, Type-C
USB 3.2 Gen 2x2	20 Gbps	-	Type-C only
USB4	40 Gbps	-	Type-C only
Thunderbolt 4	40 Gbps	TB4	Type-C only

USB Naming Decoded

The USB naming situation is one of the most confusing aspects of modern PC hardware. The USB Implementers Forum (USB-IF) has renamed the same standards multiple times, leading to widespread confusion among builders and consumers alike.

Here is the short version: what was originally called USB 3.0 got renamed to USB 3.1 Gen 1, and then renamed again to USB 3.2 Gen 1. The actual speed never changed - it was always 5 Gbps. The same renaming happened to the 10 Gbps standard: USB 3.1 Gen 2 became USB 3.2 Gen 2. This means you will see all of these names used interchangeably in motherboard spec sheets, case manuals, and retailer listings.

The practical way to identify what you are working with:

• If the port is blue inside: It is USB 3.2 Gen 1 (5 Gbps) at minimum
• If the port is teal or red: It is likely USB 3.2 Gen 2 (10 Gbps)
• Type-C does not automatically mean faster - always check the spec. A Type-C port can run at USB 2.0 speeds (480 Mbps) or up to USB4 speeds (40 Gbps) depending on the controller behind it

Rear Panel Ports

The rear I/O panel on your motherboard is where most of your USB devices will connect. Motherboard manufacturers use color coding and labeling to help you identify port speeds, though the conventions are not always followed strictly.

Here is what you will typically find on the motherboard I/O shield:

• USB 2.0 Type-A (black): For keyboards, mice, and other low-bandwidth peripherals. These are perfectly adequate for input devices and do not need higher speeds.
• USB 3.2 Gen 1 Type-A (blue): For flash drives, external hard drives, and general peripherals. The blue color inside the port is the standard indicator for 5 Gbps capability.
• USB 3.2 Gen 2 Type-A (teal/red): For fast external storage, docking stations, and devices that benefit from 10 Gbps transfer speeds.
• USB Type-C: For modern devices, smartphones, and fast storage. Often rated at 10 Gbps or 20 Gbps depending on the board.

Budget boards typically provide 4-6 USB rear ports. Premium boards offer 10-14+ USB rear ports, often with a higher ratio of fast USB 3.2 Gen 2 and Type-C ports.

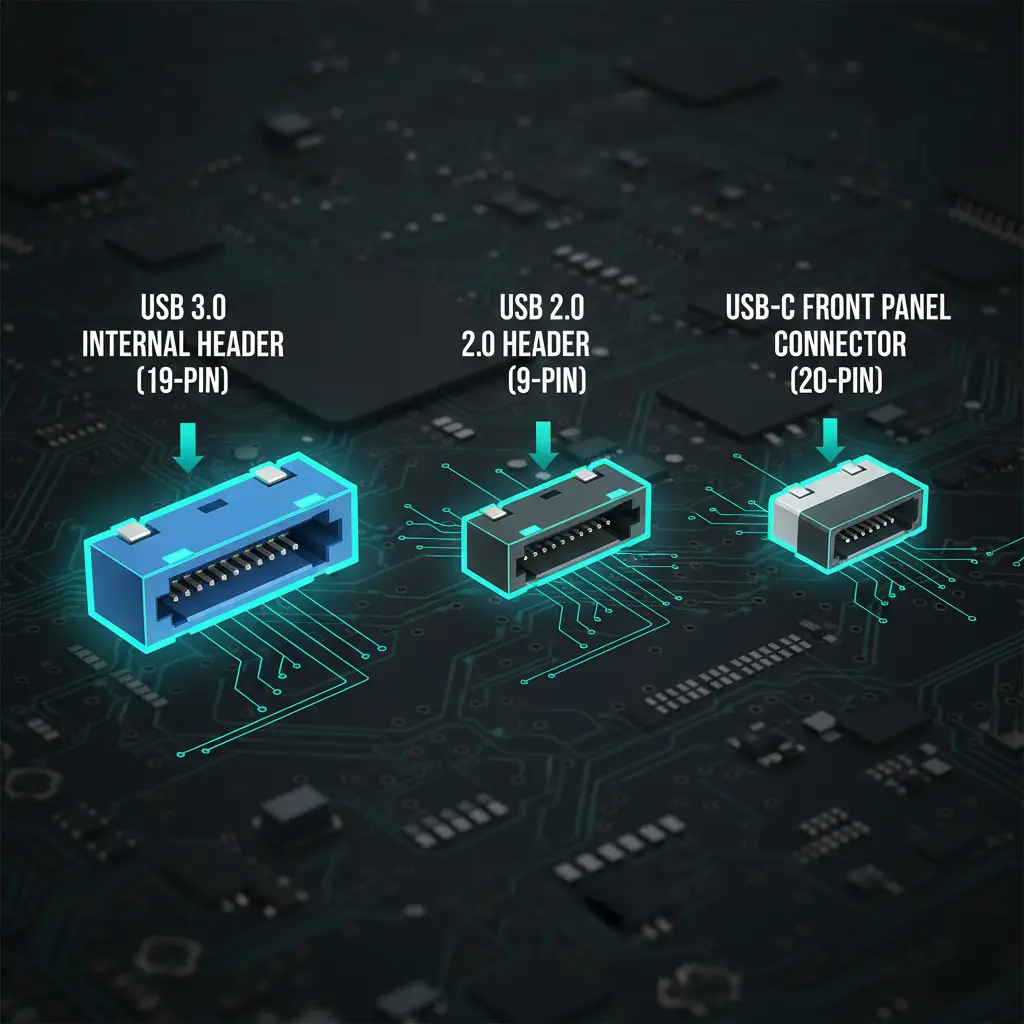

Internal Headers

Internal USB headers are the connectors on your motherboard that connect to your case's front panel USB ports. These are essential for making your case's front I/O functional. Each header type has a distinct physical shape and pin count, so they cannot be connected incorrectly as long as you match them properly.

Header Type	Provides	Pin Count	Speed
USB 2.0 Header	2x USB 2.0 ports	9-pin	480 Mbps
USB 3.2 Gen 1 Header	2x USB 3.0 ports	19-pin (blue)	5 Gbps
USB 3.2 Gen 2 Header	1x USB-C port	20-pin (key-A)	10 Gbps
USB 3.2 Gen 2x2 Header	1x USB-C port	20-pin	20 Gbps

Front Panel Connectors

Connecting your case's front USB ports to the motherboard is one of the final steps in a PC build. Getting this right ensures you can use the USB ports on the top or front of your case without reaching around to the rear I/O.

How to connect your case's front USB ports:

1. Check how many USB ports your case's front panel has. Look at the front or top of your case and count the USB Type-A and Type-C ports available.
2. Match each case cable to the correct header on the motherboard. Your case will have cables labeled for each USB type. Refer to your motherboard manual for header locations.
3. USB 2.0: Small 9-pin connector. These are the thinnest cables and connect to the 9-pin header on the motherboard, usually located along the bottom edge.
4. USB 3.0: Larger 19-pin blue connector. This is a wider, bulkier cable that connects to the blue 19-pin header. It only fits one way thanks to a notch in the connector.
5. USB-C: Key-A 20-pin connector. This is smaller than the USB 3.0 header despite having more pins. It connects to the dedicated USB-C header on the motherboard.

Type-C Headers

Front panel USB-C is becoming increasingly common in modern PC cases, but it requires a dedicated internal header on the motherboard to function. This is an important compatibility point that many builders overlook.

• Front panel USB-C requires a dedicated header on the motherboard. This is separate from the standard USB 3.0 19-pin header and cannot be adapted without a converter.
• Not all motherboards have a USB-C internal header. Budget and entry-level boards frequently omit this header to cut costs. Always check the motherboard specifications before purchasing.
• Higher-end cases increasingly include front USB-C. Mid-tower and full-tower cases from major manufacturers now commonly feature at least one front panel USB-C port.
• If your case has front USB-C, make sure your board has the header for it. If your board lacks the header, that front panel USB-C port will simply not work. Adapter cables exist (USB 3.0 19-pin to USB-C header), but they limit the speed to 5 Gbps and are not always reliable.

Planning Your USB

Before finalizing your motherboard and case purchase, take a few minutes to plan your USB connectivity. Running out of USB ports or discovering an incompatibility after building is frustrating and avoidable.

Use this checklist to make sure your build has the USB connectivity you need:

• Count the USB ports your case front panel needs. Check the case specifications for the number and type of front USB ports, then verify your motherboard has the matching internal headers.
• Verify your motherboard has matching internal headers. A case with two USB 3.0 ports and one USB-C port requires one USB 3.0 19-pin header and one USB-C header on the motherboard.
• Count rear USB ports needed for peripherals. List everything you plan to plug in: keyboard, mouse, webcam, headset, external drives, printer, and any other devices. Make sure the rear I/O has enough ports.
• Consider future needs. VR headsets need multiple USB ports. Audio interfaces, capture cards, and other peripherals add up quickly. Leave room to grow.
• Thunderbolt 4 / USB4 is a premium feature on select boards. If you need 40 Gbps connectivity for high-speed storage arrays or Thunderbolt docks, plan for a board that supports it natively.
